Creating value from smart manufacturing

July 21, 2016
Companies implementing smart manufacturing often find themselves awash in data; manufacturing data store concepts can turn these raw numbers into actionable information.

This piece, authored by John Clemons, director of manufacturing IT with Maverick Technologies, first appeared in our sister publication Pharmaceutical Manufacturing

Whether it’s called smart manufacturing, Industry 4.0 or Industrial IoT, even a casual observer of the industrial landscape can see how manufacturing is changing, driven by new technologies and rapidly evolving customer demand. Buyers expect a greater range of choices and manufacturers have responded with mass customization - the concept of building flexibility into mass production.

The pharmaceutical industry is experiencing these changes in its own way. The number of products continues to grow, and the range of choices in mature categories is vast.

Most smart manufacturing implementations start with smart instruments. Advances in electronics have created the ability to gather far more information from sensors, actuators and analyzers. A flowmeter from 20 years ago typically supplied a single flow process variable. But a modern smart flowmeter can supply hundreds of measured and calculated data points related to internal diagnostics, secondary variables such as temperature, noise signatures from the process, self-calibration functions, and other parameters (see Table 1).

As instruments got smarter, so did the controllers connected to them. Programmers were able to incorporate additional information from smart instruments into the process control strategy, using it to gain new insights and optimize processes.

For the pharmaceutical industry, it’s been a mixed bag. In general, pharmaceutical manufacturers use sophisticated instruments due to the high degree of precision necessary in most manufacturing processes. On the other hand, the closely regulated nature of pharmaceuticals makes it more difficult to adopt new technologies without going through the steps to have a process re-validated. Process analytical technologies (PAT) have made this easier, but difficulties remain.

Bottom up or top down changes?

Most attempts to implement smart manufacturing succeed or fail based on what the user
does with the data. Instruments and low-level controllers can create data. Raw materials moving around a plant can be tracked constantly using RFID, creating data. Individuals performing manufacturing tasks can have their actions recorded, creating data. But it takes higher-level systems to convert these waves of data into useful information. Diagnostics can support highly effective maintenance programs and new instrument readings can help optimize a process, but simply packing process historians with numbers has no value in itself. Effective enterprise-level networks and data analysis platforms are necessary to make it useful, with these implementations often referred to as industrial IT. The automation systems used to control batch processes common to pharmaceutical manufacturing often don’t extend to the enterprise level or offer tools to help bridge the gap. So enterprise platforms must reach down to engage with these automation systems to bring the data to where it can be useful.

Pharma's specific needs

Any consideration of pharmaceutical manufacturing has to deal with the extensive regulatory environment in which it operates:

• Plants must use specific types of equipment and undergo extensive inspection

• Processes must be qualified and validated in detail

• Meticulous manufacturing records must be maintained, and

• There must be extensive traceability within the supply chain, both for raw material in and products out, often to the point of sale.

Some of these functions happen on the plant floor. Anything related to actual manufacturing processes, such as maintaining temperature in a reactor, will be controlled where it is happening, but process variables must also be maintained in batch records. Eventually all the data moves up to a higher level where it is stored and used for whatever purposes are necessary.

With smart manufacturing implementations, the amount of data for a given process increases substantially. Smart instruments developed over the last few years have extensive native networking capabilities, so collecting data is much easier. If used properly, this data can be instructive and offer critical insights into the process.

Using a manufacturing data store

Given the amount of data collected in a manufacturing facility of any size, finding the

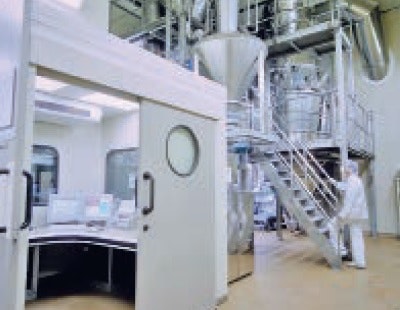

The precise nature of pharmaceutical manufacturing has caused it to use sophisticated smart instrumentation capable of supplying large amounts of important data.

information necessary for a given application is not always simple. Accessing the data can be made simpler by using a manufacturing data store strategy to extract the slice of information needed to fulfill a regulatory requirement, help improve a process or answer a question. A manufacturing data store is a selection and retrieval tool able to help users find and extract the information they need. The data store approach is used in many data-heavy applications, but has not seen extensive use in pharmaceutical manufacturing.

A manufacturing data store can help gather all the data related to a given lot of product including incoming ingredients, manufacturing steps, and handling and movement within the facility. It can connect upstream to suppliers and downstream to customers, providing details on how the products were transformed from raw materials to finished pharmaceuticals.

Manufacturing data store example: product retrieval

One of the most important and compelling reasons for a manufacturing data store is handling product retrievals or recalls. Manufacturers and regulators tend to emphasize the idea of lot tracking and lot genealogy in the context of product retrievals, as if the genealogy of the materials is the only thing capable of triggering such an event.

This mindset overlooks other potential issues. The biggest part of manufacturing is the transformation of materials into finished products, which requires equipment, labor, processes (both automatic and manual), and a variety of other activities. A more thorough evaluation requires a great deal of additional information, most of which can be accessed from a manufacturing data store.

Product retrievals can be triggered by many different issues including problems with equipment, labor, processes , etc. (see Figure 1). To make an accurate determination of what exactly needs to be retrieved, it is necessary to have all the information.

Figure 1: Many elements of a manufacturing process can trigger a product problem requiring a recall. Tracing the problem after the fact demands detailed knowledge of each step, which can be extracted using a manufacturing data store.

For example, if foreign objects such as metal, wood, plastic or other trash are found in a manufacturing area, it’s necessary to know all the batches that were processed in that area before the objects were discovered. The investigator needs lot tracking going forward, but lot tracing the raw materials back doesn’t help in this situation because they are not the source of the problem. The lot tracking of everything made in the area is necessary because anything could potentially be affected back to the last time the area was inspected and known to be clean.

As another possibility, suppose there was a problem with a piece of equipment. Maybe the agitator on a reactor wasn’t working correctly. In any case, without sufficient agitation, the reaction might not be complete and the batch should be rejected. So what was going on with the agitator and reactor?

Merely having the lot genealogy doesn’t provide the information needed here. It’s necessary to get the details on that piece of equipment to determine when it might have failed. What diagnostic information might shed light on the agitator? Was the motor drawing the normal amount of current to indicate it was rotating correctly? Is some other variable, such as a temperature profile, able to suggest if the desired reaction was or was not happening? A production unit outfitted with smart instruments could easily supply that information, and a data store could provide easy access.

Continuing the example, here is another possibility: maybe there was a problem with a particular person working in the manufacturing area. Maybe he or she was not certified, not trained, or introduced a contaminant by accident. In such a case it’s necessary to know all the labor information. Again, the lot genealogy doesn’t help. What’s needed is detailed information, and it’s probably somewhere in the data. A manufacturing data store can find it.

Traceability and more

Pharmaceutical manufacturers already practice supply chain traceability. The question to ask is how well a given company’s system works and how difficult it is to use. There is no shortage of software solutions to do the job, and many work well under certain conditions, but not all.

Companies like UPS and FedEx do an excellent job tracking shipments, but as good as those package-tracking systems are, they don’t have sufficient capabilities to fill the larger needs of pharmaceutical manufacturers. Companies need far more detail than the location and movements of a box.

A pharmaceutical-grade product monitoring and traceability package must capture everything that goes on in a manufacturing plant, not just the movement of materials. Everything related to the manufacturing process must be recorded including incoming ingredients and raw materials, storage, manufacturing processes, personnel assignments, and equipment condition. It’s a long list of items, and no single commercially available platform can do it all.

Many pharmaceutical companies use a variety of different approaches, combining manual procedures with mixed platforms. This is where smart manufacturing often begins to break down. When there is no system capable of creating value from all the data generated, the data loses its value.

Manufacturing data store concepts allow companies to build their own system customized to fit their specific needs. Implementing manufacturing data store concepts does not create more data, nor does it require reconfiguration of existing database systems. It is instead selection and retrieval tools able to help users find and extract the information they need. Many such systems have been created in a wide variety of industries, although there are few in the pharmaceutical world where they are most needed.

Smart manufacturing technologies provide many ways to automate a huge variety of manufacturing processes, and most create vast amounts of data as byproducts. A smart plant can monitor and record all its major manufacturing process elements, as well as maintenance, cleaning, quality and safety.

Implementing a data store

Many companies have built successful data store solutions internally, which at this time is the only practical option as no software providers have captured the space with comprehensive commercial product offerings. This is a mixed blessing: a solution is not a simple purchase, but at the same time, a homegrown approach can deliver exactly the capabilities a company needs most.

Before getting bogged down in the mechanical aspects of an implementation, it is important to think through why you are doing it, and what you hope to get when it is fully realized. Pharmaceutical companies have enormous amounts of data. What information might be in there capable of supporting more effective decision-making and operational efficiencies if you could just get it? Fortunately, a data store project does not have to be a huge all-at-once undertaking. It can be built-in stages beginning with the areas where it is needed most and can deliver the greatest value, hence the importance of developing the business case.

Having a partner to help with the process can be a major advantage. The right consultant can bring project experience from other industries to help sort through the initial evaluation and implementing a program. Creating a manufacturing data store is not an easy undertaking, but as many companies have already realized, it becomes a hugely powerful tool well worth the effort.
